RFE 3200 Extremely Robust Angle Sensor

Novotechnik's RFE 3200 Series of angle sensors are specifically designed to operate in demanding environments like off-highway equipment and other applications with harsh conditions where the RFE 3200 Series' ingress protection to IP69K, EMC immunity, decoupled sensor/magnet and other features/specs are essential.

Key specifications include:

  • Touchless Hall-Effect technology
  • Electrical range up to 360°

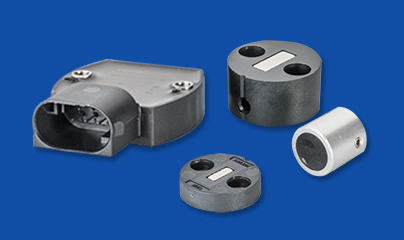

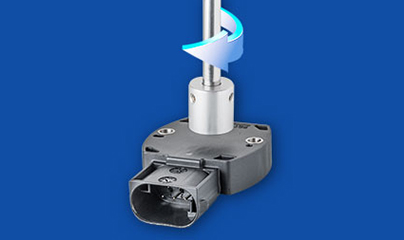

  • Sensor mechanically decoupled from magnetic marker
  • High ingress protection up to IP69K
  • Resolution up to 14 bits
  • Temperature range -40°C up to +125°C
  • Single and dual-channel versions
  • Optimized for use in mobile applications
  • Designed for highest EMC requirements such as ISO pulses and interference fields: meets or exceed 10 EMC standards/requirements, see data sheet
  • Suitable for safety-related applications according to DIN EN ISO 13849
  • Interfaces: voltage, current, CANopen, CAN SAE J1939

RFE 3200 analog output versions are available now. CANopen, CAN SAE J1939 interface versions available August, 2021.

Magnetic Position Measurement
(Hall-Effect) Explained

When a current flows through a Hall element it provides a voltage across the current flow if a magnetic field acts perpendicular to both. Since this voltage is proportional to the magnetic field strength, a non-contact and absolute angle or displacement measurement can be easily achieved by attaching a position magnet to the moving machine part of the application. The system is insensitive to aging and independent of field strength fluctuations of the magnets.

Both shafted and touchless two-part systems enable single-turn angle measurement up to 360°. High resolution with great dynamic response, large mechanical tolerances and feasibility of customer-specific output options are added benefits of this wear free technology.
