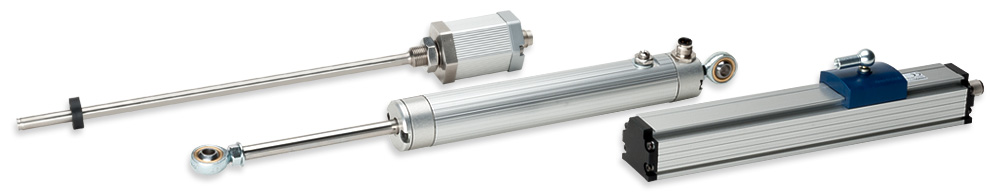

Linear Rod Series with Return Spring

Some applications require a position sensor that returns ‘to zero’ on its own. Novotechnik covers these applications with non-contacting and potentiometric sensors offering a wide variety of stroke lengths and other features.

TE1 Series with Return Spring

Compact position sensor with return spring and integrated signal conditioning.

MANUALS

CAD

CONTACT

Stroke Length	Linearity	Life (mech.)	Protection Class	Outputs
25 mm	≤ ±0.2 %	100 million movements	IP40	0 to 10 V, 10 to 0 V, 4 to 20 mA, 20 to 4 mA
50 mm	≤ ±0.15 %	100 million movements	IP40	0 to 10 V, 10 to 0 V, 4 to 20 mA, 20 to 4 mA
75 mm	≤ ±0.1 %	100 million movements	IP40	0 to 10 V, 10 to 0 V, 4 to 20 mA, 20 to 4 mA
100 mm	≤ ±0.075 %	100 million movements	IP40	0 to 10 V, 10 to 0 V, 4 to 20 mA, 20 to 4 mA
150 mm	≤ ±0.075 %	100 million movements	IP40	0 to 10 V, 10 to 0 V, 4 to 20 mA, 20 to 4 mA

LS1 Series with Return Spring

This non-contacting inductive sensor series features powerful customization and programmability.

MANUALS

CAD

CONTACT

Stroke Length	Linearity	Life (mech.)	Sealing	Outputs
25 mm	≤ ±0.1 %	100 million movements	IP40	0.1 to 10 VDC, 10 to 0.1 VDC, 4 to 20 mA, 20 to 4 mA
50 mm	≤ ±0.15 %	100 million movements	IP40	0.1 to 10 VDC, 10 to 0.1 VDC, 4 to 20 mA, 20 to 4 mA
75 mm	≤ ±0.15 %	100 million movements	IP40	0.1 to 10 VDC, 10 to 0.1 VDC, 4 to 20 mA, 20 to 4 mA
100 mm	≤ ±0.15 %	100 million movements	IP40	0.1 to 10 VDC, 10 to 0.1 VDC, 4 to 20 mA, 20 to 4 mA

FTI Series

High accuracy short-stroke inductive sensors.

MANUALS

CAD

CONTACT

Stroke Length	Linearity	Life (mech.)	Sealing	Outputs	Data Sheet
10 mm	≤ ±0.4 %	100 million movements	IP67	0 to 20 mA, 4 to 20 mA

KL Series with Return Spring

13 mm wide housing makes the KL Series a good choice for limited space applications.

MANUALS

CAD

CONTACT

Stroke Length	Linearity	Life (mech.)	Sealing	Outputs
10 mm	≤ ±1%	10 million movements	IP65	0 to voltage supplied
25 mm	≤ ±1%	10 million movements	IP65	0 to voltage supplied
50 mm	≤ ±1%	10 million movements	IP65	0 to voltage supplied

TR/TRS Series with Return Spring

Features high accuracy and compensation for applications introducing side load errors.

MANUALS

CAD

CONTACT

Stroke Length	Linearity	Life (mech.)	Sealing	Outputs
10 mm	≤ ±0.25 %	100 million movements	IP40	0 to voltage supplied
25 mm	≤ ±0.2 %	100 million movements	IP40	0 to voltage supplied
50 mm	≤ ±0.15 %	100 million movements	IP40	0 to voltage supplied
75 mm	≤ ±0.1 %	100 million movements	IP40	0 to voltage supplied
100 mm	≤ ±0.075 %	100 million movements	IP40	0 to voltage supplied

TEX Series with Return Spring

Three options for easy mounting and compact size are some of this sensor’s features.

MANUALS

CAD

CONTACT

Stroke Length	Linearity	Life (mech.)	Sealing	Outputs
10 mm	≤ ±0.25 %	50 million movements	IP54	0 to voltage supplied
25 mm	≤ ±0.2 %	50 million movements	IP54	0 to voltage supplied
50 mm	≤ ±0.1 %	50 million movements	IP54	0 to voltage supplied
75 mm	≤ ±0.1 %	50 million movements	IP54	0 to voltage supplied
100 mm	≤ ±0.1 %	50 million movements	IP54	0 to voltage supplied
125 mm	≤ ±0.05 %	50 million movements	IP54	0 to voltage supplied
150 mm	≤ ±0.05 %	50 million movements	IP54	0 to voltage supplied
175 mm	≤ ±0.05 %	50 million movements	IP54	0 to voltage supplied
200 mm	≤ ±0.05 %	50 million movements	IP54	0 to voltage supplied
