      Designed for harsh environments

      Click on a linear sensor

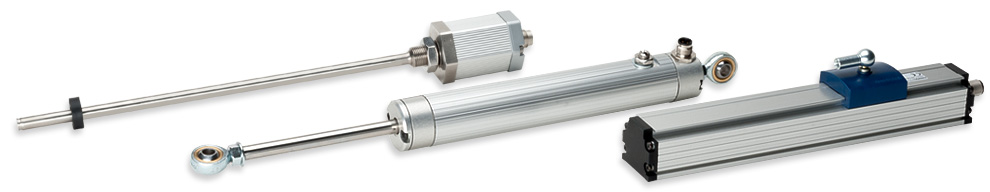

      When your application requires a sensor that is designed to work in harsh environments the following sensors are possible solutions to your application needs:

      TH1, TP1, LWX

      TH1 Series

      • For hydraulic and pneumatic applications

      • Rod style transducer

      • Magnetostrictive non-contact technology

      • Unlimited mechanical life

      • No velocity limit for marker

      • Outstanding linearity to < 50 µm

      • Resolution to 16 bits regardless of stroke length

      Product Information
      TP1 Series

      • Magnetostrictive touchless technology

      • Stroke lengths from 50 to 4500 mm

      • Outstanding linearity: to 10 micrometers

      • Resolution to 0.001 mm regardless of stroke length

      • No reference start position needed

      • Programmable end points on analog model

      • No velocity or acceleration limits for position markers

      • Low temperature coefficient to 15 ppm

      • Analog, Quadrature, Start/Stop, SSI and DyMoS interface

      • Cable or connector versions

      • Protection class to IP 68

      • Unlimited mechanical life

      Product Information
      LWX Series

      • Protection class IP 67

      • Withstands oil and water environments

      • All metal housing

      • Corrosion resistant

      • Patented differential pressure compensation system

      • Independent linearity to 0.04%

      • Shaft protected version available

      • Stroke lengths of 75 to 750 mm

      Product Information
