Programmable Rotary Sensors

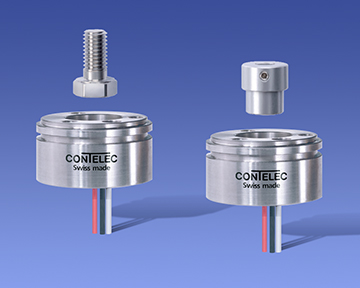

Novotechnik’s 37E Series of touchless rotary sensors uses a magnetic pickup that is secured to the rotating part of your application that is being sensed. There is no direct mechanical linkage to your application, so no sensor shaft is present and therefore there is zero mechanical wear.

Vert-X 37E sensors are available in standard configurations— 3-wire analog output as well as digital.

Programmable versions are available so you can specify any or all of these factors: slope of the linear output, zero and end-points, mid-point and switch steps to optimize the sensor for your specific application.

• 37 mm sensor diameter
• Various magnet sizes available
• 5 V and 24 V models
• Range: 360°
• Resolution to 14-bits
• Repeatability ≤ 0.1°
• Outputs: 4 to 20 mA, 0.1 to 10 V, 0.5 to 4.5 V, 10 to 90% supply voltage, Incremental, PWM, SPI and SSI
