Angle Sensors with CANopen Interface

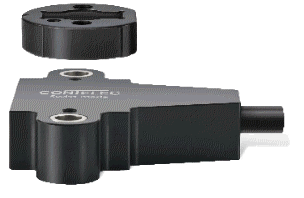

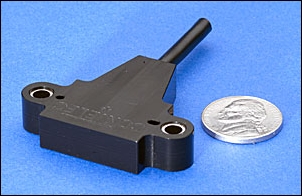

Novotechnik’s Vert-X 32E Series of touchless magnetic angle sensors use a permanent magnet attached to a rotating shaft to measure angle. As the shaft turns, the sensor detects and accurately measures the changing position of the magnet.

There is no mechanical connection between the shaft and the sensor and therefore no wear.

• CiA certified CANopen output interface
• Single and redundant versions
• Programmable
• 0 to 360° measurement
• 8 to 35 V supply range
• 16-bit resolution
• Repeatability of 0.1° or better
• 135 years MTBF
