Angle Sensors with CANopen Interface

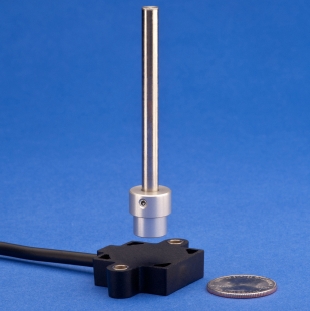

Novotechnik’s Vert-X 31E Series of touchless magnetic angle sensors use a permanent magnet attached to a rotating shaft to measure angle. As the shaft turns, the sensor detects and accurately measures the changing position of the magnet.

There is no mechanical connection between the shaft and the sensor and therefore no wear. Nine output options include a CANopen interface as well as analog and other digital outputs.

• 31 mm diameter
• CiA certified CANopen interface version
• Programmable versions
• 0 to 360° measurement
• 5 and 24V supply models
• 14-bit resolution
• Repeatability of 0.1° or better
