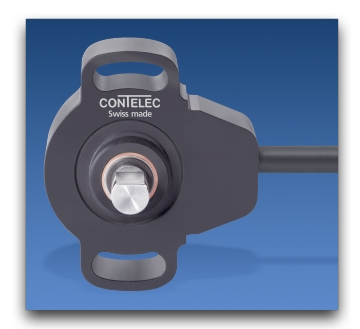

Vert-X 29 Series

High accuracy magnetic angle sensor with elongated holes for easy mounting. Can be ordered with sense of rotation (cw or ccw), zero point (start angle), mid-point, end point (end angle), and/or non-linear curve.

Key specifications include:

  • Angle measurements to 360º
  • Extended life >50 million movements
  • 12-bit resolution
  • Repeatability 0.1°
  • Sealed up to IP 67
  • Analog outputs: 5 to 95% or
  • 10 to 90% of supply voltage
  • See data sheet below
