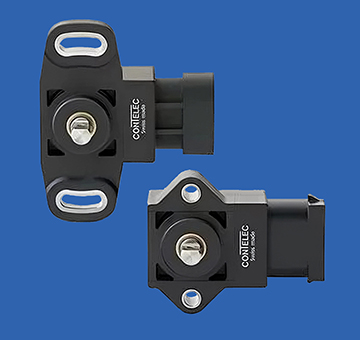

Vert-X 26 Automotive and Off-Highway Angle Sensor

The Vert-X 26 Series of angle sensors are specifically designed to operate in demanding environments like automotive and off-highway equipment as well as other applications with harsh conditions where the Vert-X 26 Series' ingress protection to IP69K, EMC immunity and other features/specs are essential.

Key specifications include:

• Hall-Effect technology
• Electrical range up to 360°
• Single and fully redundant versions
• Sensor mechanically decoupled from magnetic marker
• High ingress protection up to IP69K
• Resolution up to 16 bits
• Temperature range up to -40°C up to +125°C
• Optimized for use in mobile applications
• Designed for highest EMC requirements such as ISO pulses and interference fields: meets or exceed EMC standards/requirements, see data sheet
• Suitable for safety-related applications according to DIN EN ISO 13849
• Interfaces: CANopen, CAN SAE J1939, voltage, and current

Magnetic Position Measurement
(Hall-Effect) Explained

When a current flows through a Hall element it provides a voltage across the current flow if a magnetic field acts perpendicular to both. Since this voltage is proportional to the magnetic field strength, a non-contact and absolute angle or displacement measurement can be easily achieved by attaching a position magnet to the moving machine part of the application. The system is insensitive to aging and independent of field strength fluctuations of the magnets.

Both shafted and touchless two-part systems enable single-turn angle measurement up to 360°. High resolution with great dynamic response, large mechanical tolerances and feasibility of customer-specific output options are added benefits of this wear free technology.
