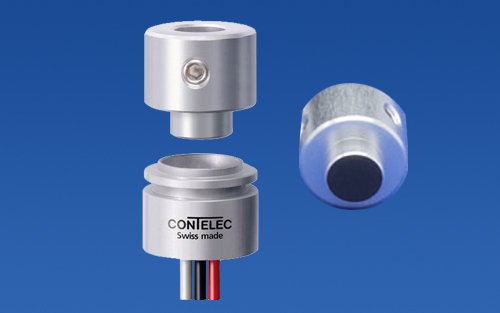

Compact, Non-Contacting Rotary Sensors

Novotechnik’s Vert-X 13E series of touchless sensors use a magnetic pickup that is secured to your application so there is no direct mechanical linkage between shaft and the measuring system, and therefore no wear.

The 13 mm sensors in this series incorporate a microprocessor to provide up to 360º of absolute angle measurement and can be programmed for a maximum angle.

Key features/specifications

  • 13 mm diameter
  • 0 up to 360° measurement range
  • Touchless technology
  • Resolution: 12 bits, 14-bits for SPI version
  • Repeatability ≤ 0.1 degrees
  • Linearity to ±0.3% of range
  • Full redundancy version available
  • Available outputs: 10 to 90% supply voltage (0.5 to 4.5 V), PWM or SPI
