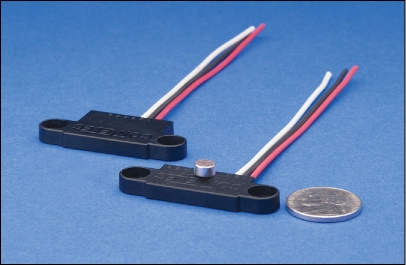

Vert-X 05E Angle and Speed Sensor

Features

• Touchless magnetic measurement
• 0 to 360° angle measurement
• Analog output 0.5 to 4.5 V (5V supply)
• Incremental outputs: TTL, differential RS-422, push-pull/HTL and open collector
• 5 mm depth x 38 mm length between mounting holes on-center
• Measurement 6 mm from edge for close-to-wall measurements
• Life: unlimited mechanical movements, 390 years MTBF
• Operating temperature range: -40 to +125 °C
• Repeatability to 0.1°
• Resolution: 12-bits for analog models
• Resolution: 256 ppr/ch (1-128;512;1,024) for incremental models
• Supply voltages 5V (analog and incremental) or 24V (incremental)
• 0 to 120,000 RPM speed measurement
