TFD 4000 Series

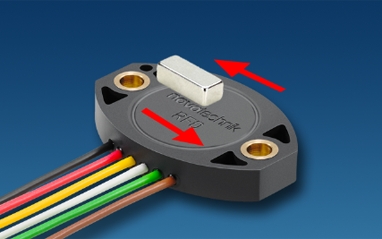

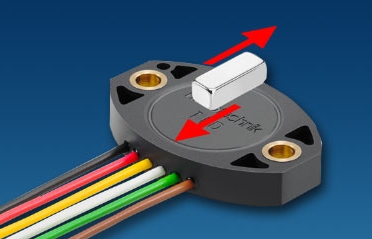

Touchless absolute position sensors with 14, 24 or 50 mm stroke length, compact housing and floating magnetic marker. Single and redundant versions are sealed up to IP69 with infinite mechanical life and over 500 years MTTF.

• Extremely flat, compact design
• Wear-Free touchless technology
• High protection class: IP67, IP68, IP69
• Resolution up to 12 bit
• Repeatability ≤ ± 0.1%
• Single and redundant versions
• Voltage output
• Optimized for tight-space and mobile applications
• Housing dimensions: 40 x 21.7 x 7 mm
• Application-Specific customization available

Applications

• Short-Stroke linear valve positioning
• Solenoid valves
• Off-Highway brake actuation
• Actuators
• Level sensing with a float
