      Please click the PDF icon below to download complete specifications.

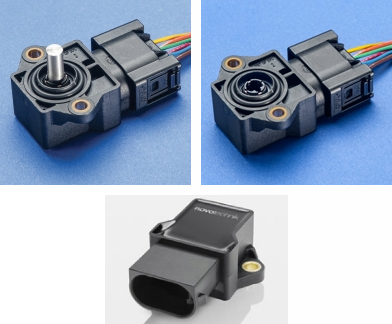

      Rotary Position Sensors

      RSK-3200 Series

      • Shaft connectivity options
      • Built-in coupling accepts D-shaft or custom options
      • Non-contacting, magnetic measuring principle (Hall effect)
      • Redundant system option
      • Measuring range up to 360°
      • Temperature range -40° up to +125°C
      • Easy mounting
      • Protection class IP69K
      • Meets EN ISO 13849 Standards for Safety Applications
      • Long life
      • Output interfaces: ratiometric (% of power supply), PWM
