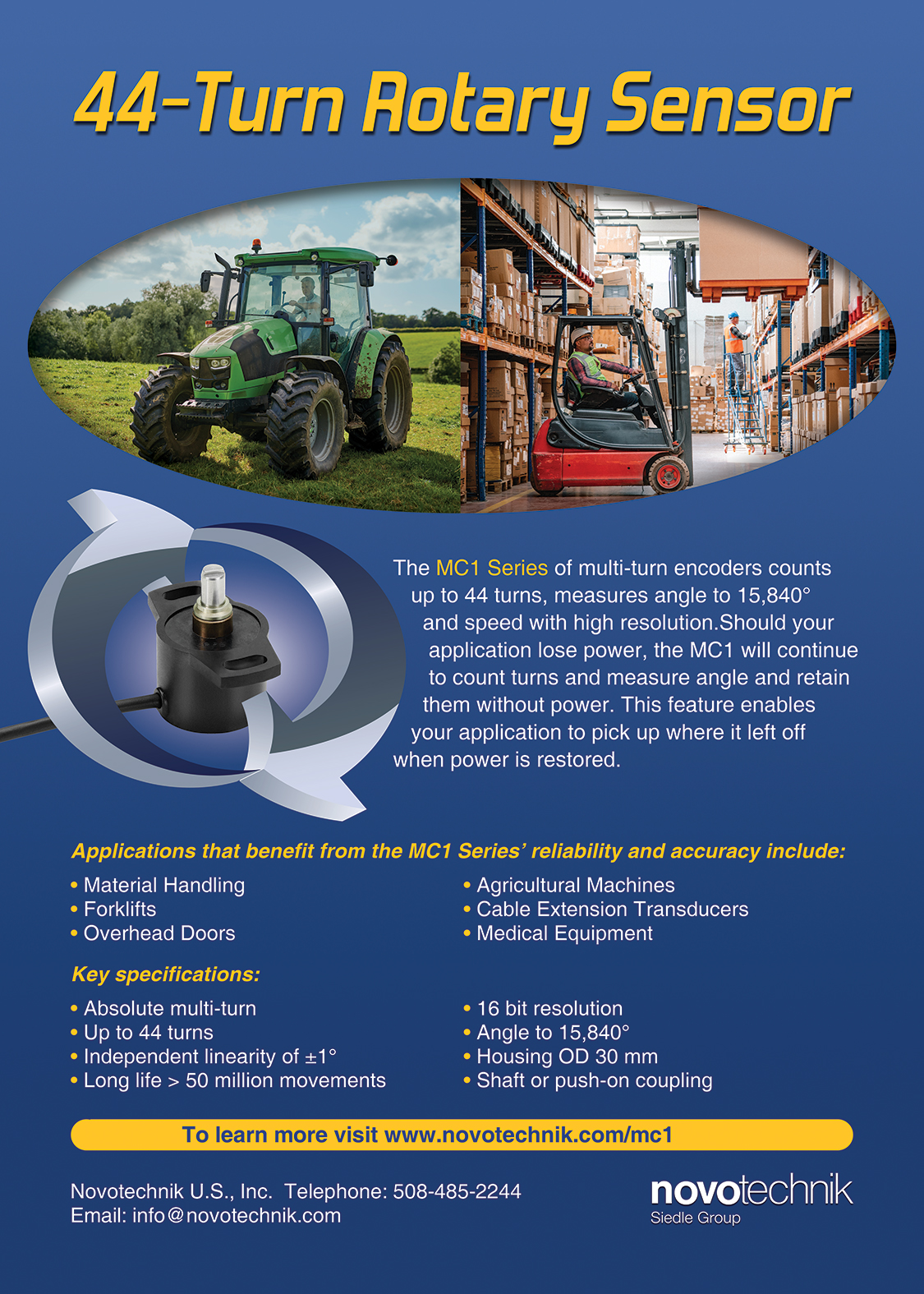

Counts to 44-Turns . . . Even When You Lose Power

The MC1-2800 Rotary Sensor counts turns, measures angles down to the last degree, and remembers shaft positions even when power is lost.

MC1-2800 Rotary Sensors provide the level of reliability and accuracy sought in demanding applications like:

  • Material handling
  • Forklifts
  • Overhead doors
  • Off-Highway vehicles
  • Agricultural machines
  • Cable Extension transducers
  • Medical equipment

The MC1-2800 is based on Novotechnik’s patented non-contact multi-turn for absolute 15,840° (44 turns) measurement. This wear-free technology combines advanced capabilities with mechanical simplicity in a very compact and sturdy housing to provide for longer life and lower cost than optical encoders. Options include stainless steel shaft or push-on coupling.

MC1-2800 Specifications:

  • Absolute multi-turn
  • Up to 44 turns
  • 16 bit resolution
  • independent linearity of ±1°
  • Housing OD=30 mm
  • Incursion protection options: IP54, IP54 or IP67
  • No gears, no optics, no batteries

MC1-2800

New novoturn™ technology by Novotechnik provides engineers with the following unique benefits.

▶ No gears, non-contact sensing means long life

▶ Small size for easy integration

▶ Works during power loss for over five years

▶ Maintains accuracy during power loss

▶ Continues to work upon power restoration

▶ Combined counting and position sensing in one part provides accuracy and flexibility

▶ High accuracy with no optics means lower cost
