The applications below show some of the marine applications where Novotechnik position sensors are used. Clicking on the thumbnail images will reveal more detail on each application including a description and the product used. For your convenience data sheets are posted for each product below the detailed application write ups. Certificates of design assessment issued from various bureaus or authorities are also available upon request.

We invite you to contact us for further information or to discuss your particular application.

System for "Laying away" the sails

Sensors for marine drive systems

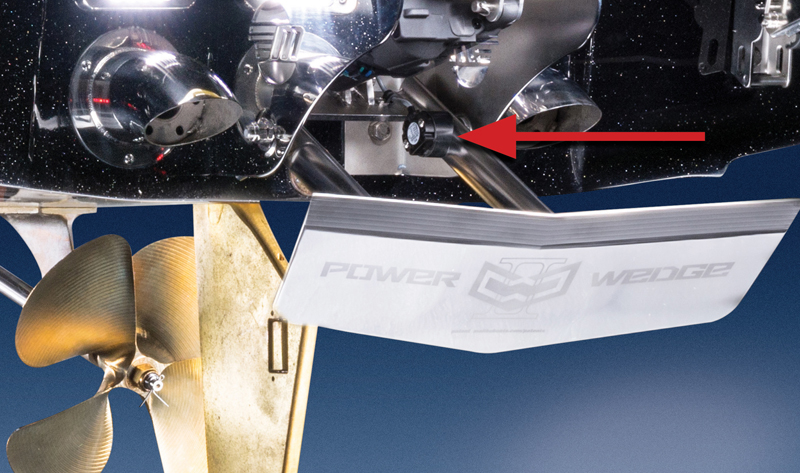

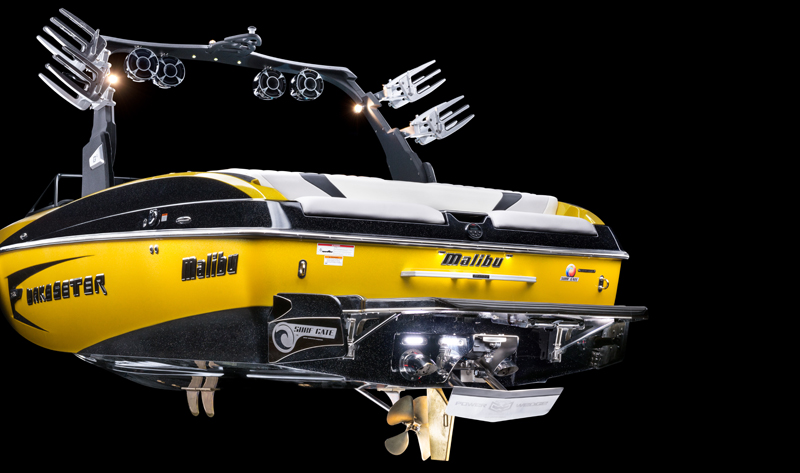

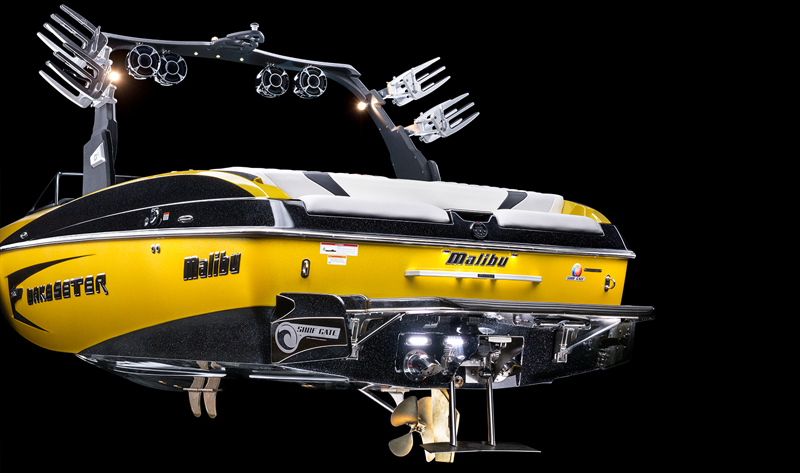

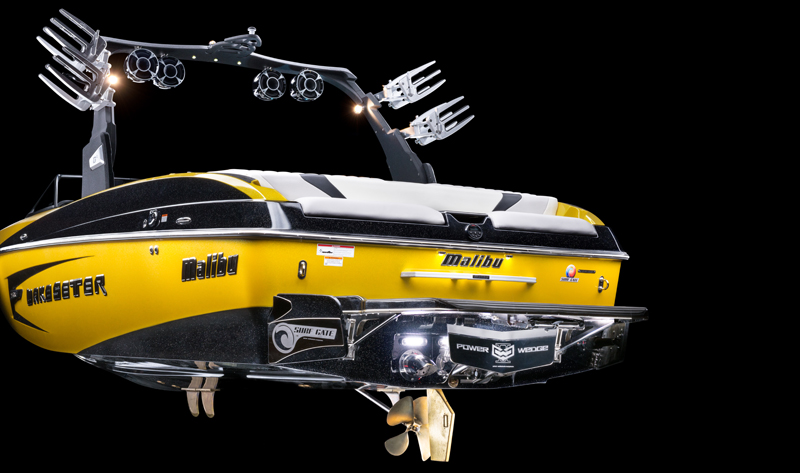

Wakeboard and surf with Malibu Boats

Rudder feedback on Autonomous Underwater Vehicle

Ship Propulsion System

Application: System for "Laying away" the sails Product: Transducer TLI

On large and very expensive ocean going yachts many of the operations are fully automated. Our customer is a British company that specializes in supplying hydraulic systems for this market. One of their most recent applications was a system for "laying away" the sails after a days sailing.

The customer chose to use a TLI because: - Electrically it was as easy to use as a potentiometer - Once fitted inside a hydraulic cylinder it was perfectly protected from the harsh marine environment - It is an absolute transducer - Repeatability

The TLI was fitted inside a hydraulic cylinder to measure its extension. The cylinder is used to raise and lower the boom to which the main sail is attached. The space available to pack the sail away is very limited so if the whole process is to be automated then precise positioning of the boom is required.

Application: Sensors for marine drive systems
Product: Vert-X 51

Ship designers have found that they can save space while getting exceptional accuracy and reliability for their command and control feedback sensors used in marine drive systems. By designing in the Vert-X 51 non-contact position sensor, used on the cruise ships shown here, ship designers have a certified marine-grade watertight sensor that measures to 14-bits and provides 360° range and switch points making additional circuitry unnecessary.

Application: Rudder feedback on Autonomos Underwater Vehicle (AUV) Product: Transducer T 50

A Novotechnik T50 (T/TS Series) is located inside an oil-filled cylinder. It is located in the cylinder for pressure compensation and to have the sensor operating in a good environment, since the AUV operates underwater at a depth of as much as 3,000 meters.

The linear sensor is directly connected to the Inertial navigation system of the AUV.

Application: Ship Propulsion System
Product: IP6000

Special ships, tugboats, cable laying ships, and ferries are equipped with rudder-propeller drives in order to improve maneuverability.

Function: These rudder-propeller drives rotate a full 360° so that thrust can occur in any direction. In a multi-drive system, a satellite navigation system and a computer can be used to achieve synchronized and independent regulation, which can exactly postion the ship even in heavy seas.
